The ideal extension for every FSM screen is an efficient screenings handling plant with which practically complete washing out of septage together with higher dryness and strongly reduced volume reduction can be achieved.
Washing, dewatering and volume reduction of screenings. Application in water and waste water treatment.
Available in 3 sizes with screw diameters of 200, 300 and 350 mm.

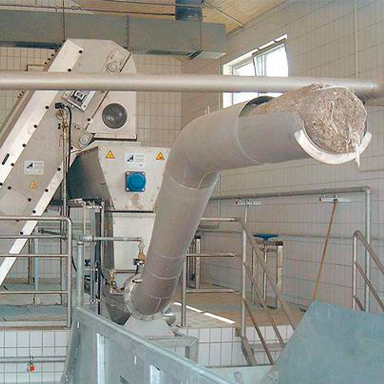

Functional principleThe FSM Screening Washing Press is available in 3 sizes with screw diameters of 200, 300 and 350 mm. It is used to dewater, compact and convey screenings or other damp/wet waste materials.
Waste materials from a screen, screw conveyor or conveyor belt are dropped into the inlet hopper. The worm screw conveys, dewaters and compacts the waste material.
The water escaping from the compacted material is released to the flume.
With the help of the built-in washing device, fecal matter is subjected to a wash-board friction operation, loosened and washed out.
Hair, fibers etc. which could cause operating failures and build-ups remains in the screenings. Service water can be used as wash water.
Optional we can install a whirl agitator at the inlet hopper, which generate an intensive prewashing of the screenings.
The Screening Washing Press is able to deal with a sudden change in load better than a conventional worm Screening Washing Press.
The Screening Washing Press is a sturdy steel constuction. The worm screw blades are made of wear resistant material and welded to the screw shaft.
The unit is driven by an SEW geared motor.
If the installation is used outdoors, the discharge pipe can be provided with heating.
In Order to increase the dry solid matter content, the Screening Washing Press can be equipped with an additional dewatering unit. Here the back pressure is generated by an adjustable hydraulic cylinder which communicates with the drive motor and thus regulates the solid matter content. The screenings are discharged via a discharge pipe to a container or conveyor.
High reliability through robust construction |
Reduction of waste disposal costs, minimising of volume and weight of screenings |
Apart from fast-wearing parts, constructed entirely of stainless steel |
Washed out matter is returned to the flume |
Optional: whirl agitator at the inlet hopper, for an intensive prewashing |
If a shredding unit is fitted, improved spreading and drying out of screenings |
Installation is smell-tight throughout when a bagging unit is fitted |
Easily retrofitted to an existing installation, because very flexible |
Excellent cost/performance ratio |
Low maintenance costs |
Machine completely hygienically encapsulated |
Type: | SPW-200 | SPW-300 | SPW-350 |
---|---|---|---|
Diameter of conveyor screw: | 200 mm | 300 mm | 350 mm |
Throughput: | up to 10 m³/h, larger throughputs on request | ||
Solid matter: | > 40% | ||
With Back Pressure Device: > 50% | |||
Elutriation of fecal matter: | < 20 mg/g BSB5 | ||
Volume-/weight reduction: | 65 - 85% |
Machine frame: stainless steel SS304 or SS316, other materials on request |
Discharge pipe: stainless steel SS304 or SS316, other materials on request |
Sack filling device: stainless steel SS304 or SS316, other materials on request |
Shredding unit housing: stainless steel SS304 or SS316, other materials on request |
Conveyor screw: extremely wear resisting steel |
Wear strips: extremely wear resisting steel |
Drives: geared motors, make SEW |
Washing, dewatering and volume reduction of screenings. Application in water and waste water treatment.
Available in 3 sizes with screw diameters of 200, 300 and 400 mm.

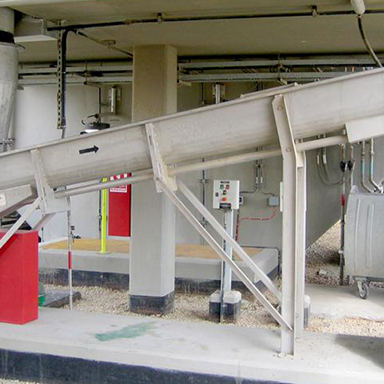

Functional principleThe FSM compacting conveyor is available in 3 sizes with screw diameters of 200, 300 and 400 mm. It is used to dewater, compact and convey screenings or other damp/wet waste materials. Waste materials from a screen, screw conveyor or conveyor belt are dropped into the inlet hopper.
The worm screw conveys, dewaters and compacts the waste material. The water escaping from the compacted material is released to the flume.
An optional available washing device, washes out more than 90% of fecal matter.
Hair, fibers etc. which could cause operating failures and build-ups remains in the screenings. Service water can be used as wash water. The unit is driven by an SEW geared motor.
If the installation is used outdoors, the machine can be provided with heating.
High reliability through robust construction |
Reduction of waste disposal costs, minimising of volume and weight of screenings |
Apart from fast-wearing parts, constructed entirely of stainless steel |
Washed out matter is returned to the flume |
Installation is smell-tight throughout when a bagging unit is fitted |
Can be easily retrofitted to an existing installation, because very flexible and adaptable |
Excellent cost/performance ratio |
Low maintenance costs |
Machine completely hygienically encapsulated |
Type: | SFC 200 | SFC 300 | SFC 400 |
---|---|---|---|
Diameter of conveyor screw: | 200 mm | 270 mm | 370 mm |
Throughput: | up to 10m³/h pipe screenings | ||
Solid matter: | > 30% | ||
Volume-/weight reduction: | 40 - 60% |
Machine frame: stainless steel SS304 or SS316, other materials on request |
Sack filling device: stainless steel SS304 or SS316, other materials on request |
Conveyor screw: stainless steel SS304 or SS316, other materials on request |
Drives: geared motors, make SEW |
Active or passive support for screenings wash compactors Application in water and waste water treatment.

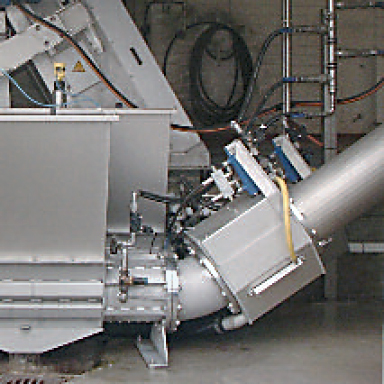

Functional principleThe FSM back pressure device is optionally built into the discharge pipe of a screenings washing press. The open section of the discharge pipe is varied by means of a shutter which is operated by a hydraulic cylinder.
The TS content can be set to the required value — a TS value of over 50% can be achieved.
To ensure high operating reliability at high TS values, the current consumption of the screenings washing press drive is monitored and a special drive control prevents high wear of the extruding screw. We thus achieve high performance combined with low operating costs. After leaving the back pressure device, the screenings remain in the discharge pipe and drop into a container or onto a conveyor at the end of the pipe.
High reliability through robust construction |
Reduction of waste disposal costs, minimising of volume and weight of screenings |
Made of stainless steel |
Can be easily retrofitted to an existing installation, because very flexible and adaptable |
Excellent cost/performance ratio |
Low maintenance costs |
Machine completely hygienically encapsulated |
Diameter: | 200 mm | 300 mm | 350 mm |
---|---|---|---|
Throughput: | up to 12 m³/h — larger throughputs on request | ||
Solid matter: | > 50% | ||
Volume reduction: | 65 - 85% | ||
Weight reduction: | 65 - 85% |
Machine housing: stainless steel SS304 or SS316, other materials on request |
Plate: stainless steel SS304 or SS316, other materials on request |
Supplementary item for screenings wash compactors · Optimum use of container volume · Application in water and waste water treatment.
Functional principleThe device can be directly flange-mounted on a discharge pipe.
The compactor presses the pellets against the spiral screw of the screenings cutter, thus rasping the cluster, so that only small lumps drop into the container.
High reliability through robust construction |
Reduction of waste disposal costs, minimising of volume and weight of screenings |
Made of stainless steel, except wear parts |
Easily retrofitted to an existing installation, because flexible and adaptable |
Excellent cost/performance ratio |
Low maintenance costs |
Machine completely hygienically encapsulated |
Type: | AF 450 |
---|---|
Screw diameter: | 400 mm |
Throughput: | up to 10 m³/h — larger throughputs on request |
Machine housing: stainless steel SS304 or SS316, other materials on request |
Conveyor screw: extremely wear resisting steel |
Wear strips: HDPE |
Drives: geared motors, make SEW |
