FSM grit treatment systems are amongst the most efficient and durable heavy duty equipment available on the world market. Our long experience enables us to combine individual units to produce complete installations which clean and load the grit completely automatically.
Grading and pre-cleaning grit separator material, sewer flushing material and street sweepings. Application in waste water treatment.
Functional principleThe drum screen can be charged via feed pipe, free flow supply or screw conveyor. Material which does not pass through the perforations remains in the screening drum in accordance with hole size. A line of nozzles assists separation of small matter from large matter and washes off e.g. adhering grit. Washed off matter flows through the perforations with the wash water and passes to a collection tank from which it can be fed to a further treatment stage.
If desired by customer, the screening drum can be provided with a series of perforations of differing sizes. This enables various fractions with different grain sizes to be obtained.
High reliability through robust construction |
Screenings can be conveyed or pumped into the screening unit |
Application as pre-separator of organic matter in grit wash separator installations or sizing unit |
Extends use of grit reception station to road sweepings reception station |
Excellent performance/price ratio |
Low maintenance costs |
Easy retrofitting to suit changed operating conditions |
Machine completely hygienically encapsulated |
Length/width/height | on request |
---|---|
Diameter | 500 mm – 2.000 mm, other sizes on request |
Throughput | up to 10 m³/jam – higher throughputs on request |
Perforation | 2 - 40 mm, other sizes on request |
Machine frame: stainless steel SS304 or SS316, other materials on request |
Drum: stainless steel SS304 or SS316, other materials on request |
Covers: stainless steel SS304 or SS316 and PE |
Drives: geared motors, make SEW |
Solid-liquid separation from grit separator or pre-treated sewer flushing material and street sweepings with simultaneous reduction of volatile solids. Waste water treatment.

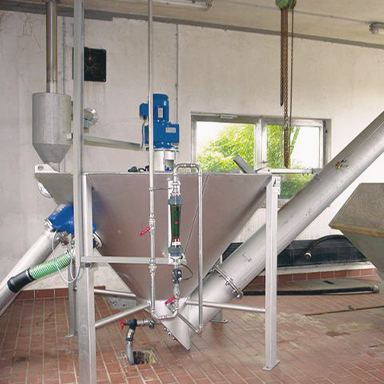

Functional principleThe grit/water mixture is fed in via the inlet flange of the grit wash tank. Organic matter is held in suspension and floated off while the grit is sedimented in the tank. With the addition of water, the sedimented grit is separated from the remaining organic constituents using a stirring device and up-current technique. The grit is removed from the tank, de-watered and discharged via a discharge screw.
With the addition of a bunker at the upstream side, the FSM grit wash unit can be extended to become a reception station for sewer grit. If a fractionating and washing drum is positioned between the bunker and the wash unit, the installation can be additionally used for conditioning street sweepings.
High reliability through robust construction |
Can be used with upstream coarse screen |
Service water which is substantially free of COD and BOD can be used as wash water |
The grit washer separator can be optionally mounted on a scraper bridge and fed with wash water from the grit chamber |
The organic content can be reduced to volatile solids <3% |
Can be extended to become a reception station for sewer grit and street sweepings |
Can be charged with up to 30 l/s |
Dry charging version as extension or retrofitting for compact installations |
Dry charging version as retrofitting for existing grit sizing machines |
Excellent cost/performance ratio |
Low maintenance costs |
Easily adapted to suit changed operating conditions |
Machine completely hygienically encapsulated |
Length × width × height | 5200 × 2200 × 3120 mm, other dimensions on request |
---|---|
Throughput | up to 40 l/s, other throughputs on request |
Installation size | SWA-10 / SWA-18 / SWA-30 / SWA-40 / TB-SWA |
Organic content of grit | < < 3 % volatile solids |
Separating capacity | > > 95% of particle size 0.2 mm |
Machine frame: stainless steel SS304 or SS316, other materials on request |
Agitator: stainless steel SS304 or SS316, other materials on request |
Conveyor screw: special steel or stainless steel SS304 or SS316, other materials on request |
Drives: geared motors, make SEW |
Solid-liquid separation from grit separator or pre-treated sewer flushing material and street sweepings. Application in waste water treatment.

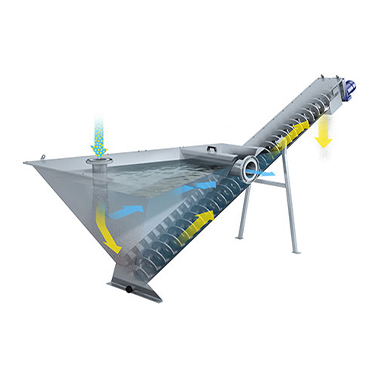

Functional principleInflow of the grit/water mixture can be either under pressure or via gravity line. The tangential feed induces a rotary movement in the water which causes (Type SK) the heavier substances such as sand to sink to the apex of the tank, where they are removed and dewatered via the screw conveyor. The grit is thus rendered substantially free of organic matter.
The grit classifier Type TSK is feeded from the top with the grit water mixture.
The FSM grit classifier effects a continual separation of the grit from the waste water flow while reducing the organic portion of the solids and dewatering the grit.
High reliability through robust construction |
If required, the grit separator can be constructed so that conversion to a a grit washer can be carried out at a later date |
The unit can be extended to include an input station for channel grit and street sweepings |
Feed rate of up to 50 l/s possible |
Excellent cost/performance ratio |
Low maintenance costs |
Easily adapted to suit changed operating conditions |
Machine completely hygienically encapsulated |
Type: | SK | TSK |
---|---|---|
Length | 5200 mm | 6700 mm |
Width | 2200 mm | 2100 mm |
Height | 3120 mm | 3500 mm |
Throughput: | up to 40 l/s | up to 50 l/s |
Other sizes and throughputs on request |
Machine frame: stainless steel SS304 or SS316, other materials on request |
Conveyor screw: special steel or stainless steel SS304 or SS316, other materials on request |
Drives: geared motors, make SEW |
Receiving station for grit separator or pre-treated sewer flushing material and street sweepings. Application in waste water treatment.
Can be extended to provide a complete unit for grading, waste water treatment and dewatering.
If desired by customer, the drum screen can be provided with a series of screening zones, where various fractions are separated by means of perforated plates of differing perforation size.

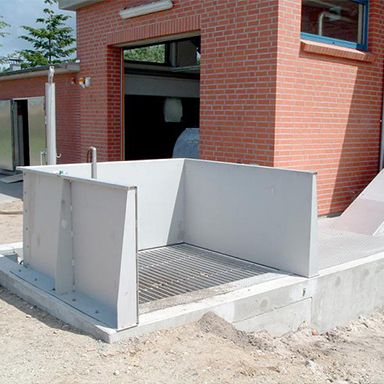

Functional principleGrit material is delivered via suction truck or similar and tipped through the screening grid into the bunker. The screening grid is designed either as a fixed rack or a vibrating screen. The material is fed via a screw conveyor either to a pumping pit or directly to a grit wash separator. The grit wash separator separates the organic and mineral contents and discharges the washed grit in the required quality in accordance with prescription.
As an option, a screening drum can be fitted between the reception bunker and the grit wash separator. This enables the grit reception station to deal with road sweepings.
With the help of the screening drum, coarse material is separated from grit.
The grit gathers in a collection vessel together with spray water from the screening drum. The grit/water mixture is fed to a grit wash separator for further processing. Coarse material drops into a container or a screw conveyor at the end of the screening drum.
If desired by customer, the drum screen can be provided with a series of screening zones, where various fractions are separated by means of perforated plates of differing perforation size.
High reliability through robust construction |
Reduced manpower requirement with vibrating screen |
Reduced space requirement with pump version |
Can be laid out as receiving station for sewer grit and road sweepings |
Excellent performance/price ratio |
Low maintenance costs |
Easy retrofitting to suit changed operating conditions |
Machine completely hygienically encapsulated |
Length × width × height | on request |
---|---|
Throughput | on request |
Organic content of grit | < < 3% volatile solids |
Separating capacity | > >95% of particle size 0.2 mm |
Buffer volume | up to 24 m3 - greater volumes on request |
Coarse screen | any gap width, designed as fixed grid or as vibrating screen |
Machine frame: stainless steel SS304 or SS316, other materials on request |
Agitator: stainless steel SS304 or SS316, other materials on request |
Conveyor screw: special steel or stainless steel SS304 or SS316, other materials on request |
Drives: geared motors, make SEW |
For controlling the flow speed in circular sand-traps with the objective of not allowing organic matter to settle. Application in waste water treatment.

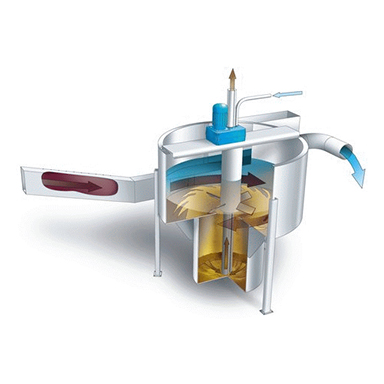

Functional principleThe paddle mixer is positioned at the center of the round grit separator and is driven by a geared motor located in a dry area. The shape, size and number of paddles of the mixer is arranged to produce optimum flow in the tank which supports the waste water circulation and thus improves the separating capacity. The deposited material travels to the collecting hopper from where it is removed by suction pump or air jet lift. As an option, an aerated grease trap with an automatic skimming device can be installed.
High reliability through robust construction |
High grit separation capacity |
Optional extra: aerated grease trap with skimming device |
Low energy consumption |
Grit removal via drive unit possible |
Excellent performance/price ratio |
Low maintenance costs |
Easy retrofitting to suit changed operating conditions |
Machine completely hygienically encapsulated |
Throughput | on request |
---|
Paddle mixer: stainless steel SS304 or SS316, other materials on request |
Grease removal: stainless steel SS304 or SS316, other materials on request |
Board: stainless steel SS304 or SS316, other materials on request |
Aeration: stainless steel SS304 or SS316, other materials on request |
Slewing ring: Hoesch-Rothe-Erde |
Drives: geared motors, make SEW |
