Kugler Mechanical Thickeners E-OP Series

With oval plates

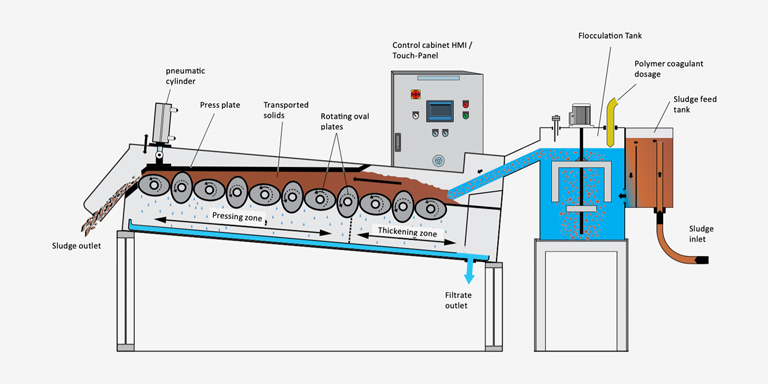

Kugler mechanical thickener working principle — Mechanical thickener working principle

For drainage & disposal of sludge.

Easily and quickly increase the solids-concentration of surplus sludge going into anaerobic digestion.

The mechanical thickeners with oval plates (Series E-OP) are ideal for thickening of primary sludge, waste activated sludge or a mixture thereof before entering anaerobic digestion.

The machine is ideally suited to dewater digestate and manure,it is used for compacting screening residue and has an outstanding performance in separating solids smaller 1mm in industry and final disposal.

Functional principle

The core of the machine is a series of parallel mounted, slowly rotating oval plates. The oval plates are rotating within a static grid with a 1 mm space between the bars. The rotating plates carry the solids on the grid further while the liquid phase rinses downwards. The oval shape of the plates causes a wave-like movement, by which the sludge is dewatered well while the plates are being self-cleaned (no rinsing or flushing necessary). It can work without being blocked, even when draining fermentation residues.

Features

Robust and stable operation—no blocking possible

Higher throughput and better dewatering results compared to static thickeners

Energy-saving, low noise and low vibration

Self-cleaning—no backwashing necessary

Low maintenance

Models

Models without Press Plate
Models	Troughput (DS inlet) (m³/h)		Weight (kg)	Power Supply (kW)
Models	0.2%	1.0%	Weight (kg)	Power Supply (kW)
E-OP 12-30	24	4.9	110	0.2
E-OP 12-40	34	6.7	200	0.2
E-OP 12-60	50	10	230	0.4
E-OP 12-80	92	18	410	0.75
E-OP 12-100	115	23	470	0.75
E-OP 12-120	140	28	600	1.5
E-OP 16-120	185	37	1300	1.5

Models with Press Plate
Models	Troughput (DS inlet) (m³/h)		Weight (kg)	Power Supply (kW)
Models	1.0%	2.0%	Weight (kg)	Power Supply (kW)
E-OP 11-30 PP	4	2	120	0.4
E-OP 11-40 PP	6	3	200	0.4
E-OP 11-60 PP	8	4	230	0.4
E-OP 11-80 PP	12	6	410	0.75
E-OP 11-100 PP	14	7	570	1.5
E-OP 11-120 PP	16	8	750	1.5
E-OP 24-120 PP	20	410	1670	2.2
